REQ Diffs Window

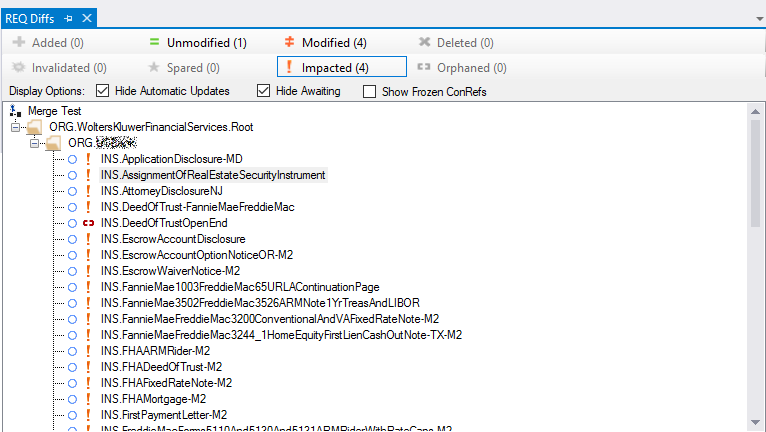

The REQ Diffs window displays all differences between the Incoming and the Existing REQ documents.

The blue Progress Status icon ( ) indicates the associated document needs to be reconciled.

Filters

At the top of the tab are buttons that allow you to filter the items displayed within the tab, as follows:

Note: Hovering the pointer over the buttons displays a tooltip with a brief description of the associated command.

For more information, refer to Merge Window Filters.

Display Options

Immediately below the Filters buttons are the display options. These options allow you to display only the items sorresponding to the selected option.
  • Hide Automatic Updates: Hides all items identified as automatically updated.
  • Hide Awaiting: Hides all items that are identified as Pending.
  • Show Frozen ConRefs: When selected, only frozen content references are displayed. Within this window, frozen content references are indicated with a blue flag ( ).

Context Menu Items

Context menus are designed to help you perform the most common tasks when working with specific windows and documents. For more information, refer to Context Menu Items.

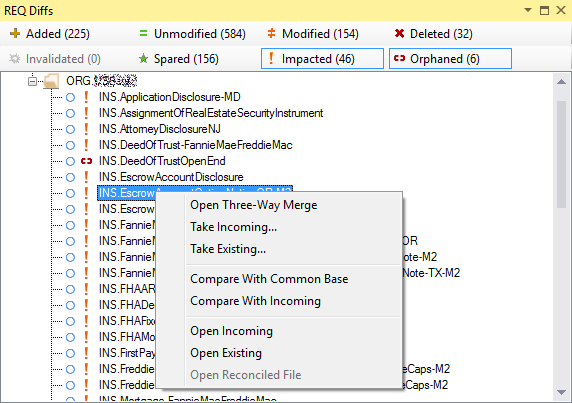

Figure 1. Example of REQ Diffs Context Menu
