Editing Signature Height and Width

You can modify the height and length of any Signature field within a document. Default height is .5in and default length is 2.5in.

Note: For this example, we will increase the length of the Signature field.

Open the REQ file within which you wish to modify the Signature dimensions.

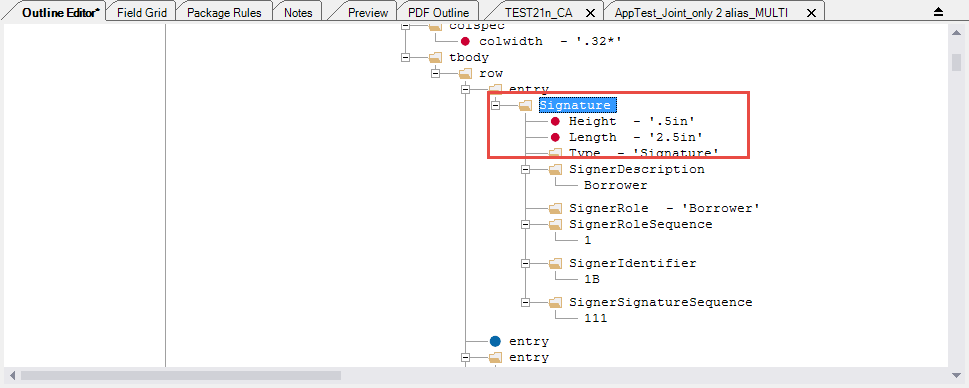

Locate the Signature field that you wish to edit.

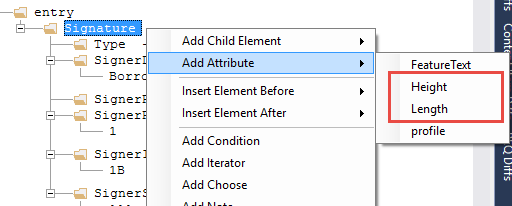

The attributes of Height and Length are not automatically added when a Signature element is added to a document. To add a Height or Length, you will need to add them as an attribute.

After you add the Height and Length, you will need to enter in a value. Entering the value in inches is best practice. If you do not need to override the default .5in height and/or the 2.5in length, then there is no need to add the additional attributes.

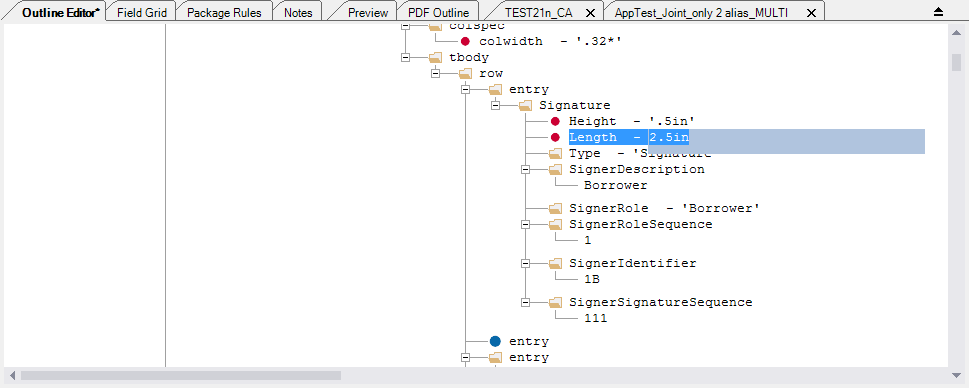

If you wish to change a default value, double-click the value you wish to modify.
The field is highlighted and placed in edit mode.

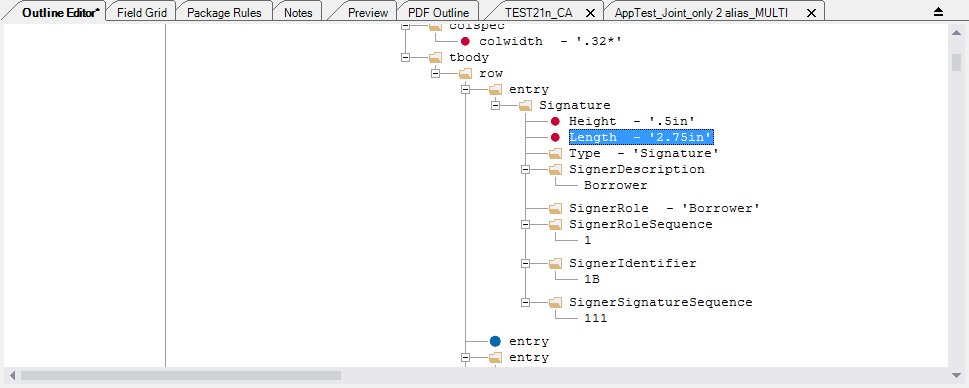

Enter the desired value and press Enter. Best practice is to use values in inches (ex: 2.75in)
The new value is accepted.
Save the REQ file to save your changes.
