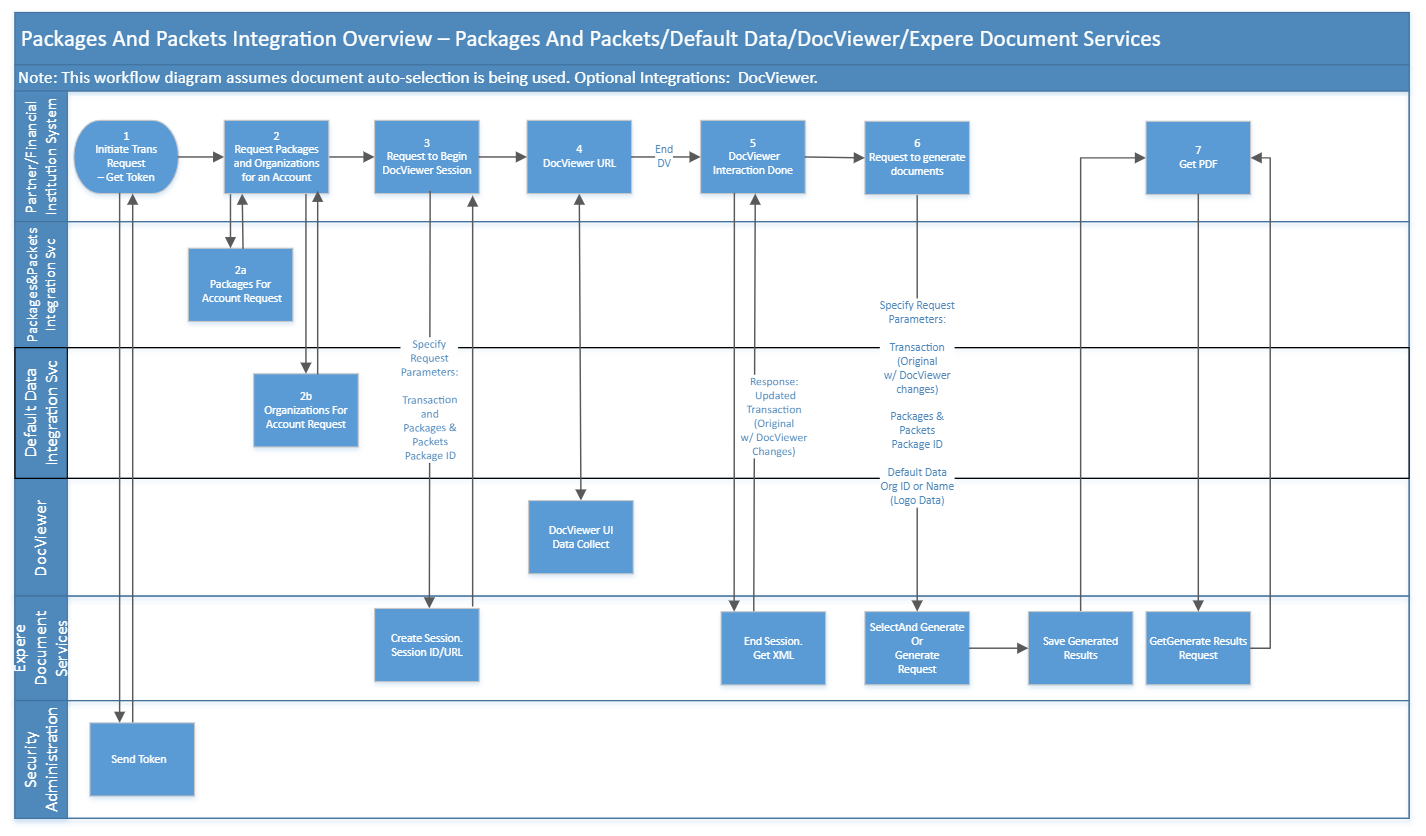

Expere EZ Config Packages and Packets Workflow Outline

  1. The external applications calls Security Administration to obtain an access token used for authorization.
  2. The external application makes the following calls to the Expere EZ Config Integration Services:
    1. Packages and Packets Integration Service to request a list of packages for a given account using the Packages For Account API.
    2. Default Data Integration Service to request a list of organizations for a given account using the Organizations API.
  3. Expere Document Services resolves the alias to obtain a content URI that DocViewer will understaned, and then calls BeginSession on DocViewer. DocViewer obtains a Simple web Token (SWT) through Expere Document Services and adds that to the BeginSession Response with the DocViewer URL (/DocServices/Services/SecuritySession/SecuritySessionSvc.svc) and SessionID; this collection of data is sent back to the original calling party (BeginSessionResult).
  4. The extermal application renders a page that immediately redirects to the returned DocViewer URL and posts the token. DocViewer validates the SWT that was passed in the SOAP; if the token is valid, users input data via DocViewer.
  5. After performing data entry on all desired documents, an EndSession call is placed, which returns the updated transaction through the response file (EndSession, EndSessionIn, and EndSessionResult).
  6. For detail on steps 6 and 7, see /WK-Hosted-Expere/Web-Services/topics/eds_Workflow-Outline-SelectAndGenerate.html for detailed information of the steps that occur.
