Sessions - POST

Overview

This is the service call retrieves the associated account ID when starting a session.

Method

Method URL Description
POST /api/Sessions The POST method submits the id and transaction data as part of the call to begin the DocViewer session.

Parameters

Name Type Constraints Description
accountId integer required An element indicating the Administration account to associate the request.
TransactionXml string required Transaction file to use with the new DocViewer session
CallbackPath string The request path within the application's base path where the user-agent will be returned
Packages array
Documents
OverlayDictionary.OverlayDictionaryName string Get/set the name of the overlay dictionary to be used
OverlayDictionary.PrecedenceLevel string Get/set the precedence level (e.g.- ORG.MyOrg) the dictionary can be found at in the repository
OverlayDictionary.MergeOverlaysToParent boolean
supplementalREQFiles array
docOrder array
Options.IsSummaryTrayVisibile boolean Get/set the visibility of the data collect pane on the left side of the doc view screen
Options.IsPackageMenuVisible boolean Get/set the visibility of the package dropdown menu.
Options.IsDocumentDrawerVisible boolean Get/set the visibility of the document drawer at the top of the doc view screen
Options.IsDocumentCompletionEnabled boolean Get/set indicator to activate document completion features
Options.IsCreateDocumentVisible boolean Get/set the visibility of the create document button
Options.IsCreatePDFVisible boolean Get/set the visibility of the create PDF checkbox
Options.IsDocOptionsHeaderVisible boolean Get/set the visibility of the "Doc Options" header. HTML DocViewer only
Options.IsDocDisplayHeaderVisible boolean Get/set the visibility of the Doc Display header. HTML DocViewer only
Options.IsBackButtonDisabled boolean Get/set the visibility of the back button
Options.Extension string The data extension, if any, to apply. Value of "SBA" will apply the SBA Data Collect Extension
Options.SelectedPackage.Id string Expere Id of the package
Options.SelectedPackage.Name string Readable name of the package
Options.AdditionalXPaths array Any additional xpaths for which to prompt on the Doc Options screen. This option is only used when a list of documents is used for autoselection. If a list of xpaths is provided, the Doc Options screen will display (instead of going straight to the documents) with the specified xpaths available for data entry. Please note that the xpaths will not show up if they are still marked as suppressed in the working dictionary (or overlay dictionary).
Options.IsReadOnly string Get/set indicator to display DocViewer in a read-only state
Options.SelectedScreen integer
Options.SelectedDocId string The desired Document to initially navigate to. Passed in the form 'PKGD.MyDocument
Options.SelectedDocInstanceNumber integer The instance number of the SelectedDoc to initially navigate to. Will default to 1.
Options.SelectedDocScrollLocation integer The desired y-axis scroll location within the SelectedDoc to initially navigate to. Will default to 0.
Options.HideSessionTimeoutErrors boolean Flag to tell DocViewer to not display a session timeout error. If this is passed, it is assumed that the calling application will be keeping track of its own timeout and/or acting upon the 'timeout' javascript message DocViewer will pass when it has timed out
Options.TrackXPathChanges boolean Flag to tell DocViewer whether or not to track xpath changes in the transaction and return them in the EndSession/GetSession calls
Options.SupportRequiredData boolean Flag to tell DocViewer whether or not to you want Docviewer to indicate required fields
Options.MergeTransactionWithEmpty boolean Flag to tell DocViewer merge the input txn with the empty transaction in the REQ
Options.TrackXPathChangesWithIndexAttribute boolean Flag to tell DocViewer whether or not to track xpath changes in the transaction and return them in the EndSession/GetSession calls

Sample Request

{
  "account": {
    "id": 1
  },
  "TransactionXml": txndata
  },
  "packages": [
    {
      "id": "expere://1.DepositShort.1.ORG.WoltersKluwerFinancialServices.Root/PKG.DepositAccountOpening"
    }
  ]
}

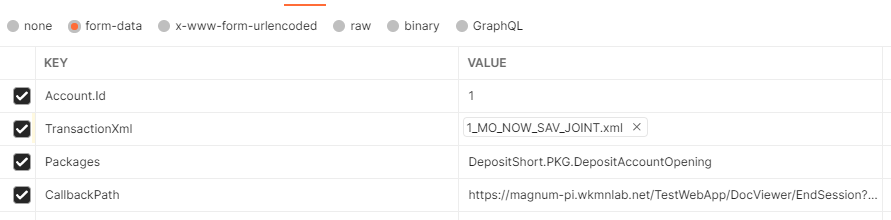

See example screenshot from Swagger:

Sample Response

{
    "error": null,
    "errorId": null,
    "sessionId": "e6d44e78-68c8-48b5-90cb-9732d418e7cd",
    "redirectUrl": "https://magnum-pi.wkmnlab.net/DocViewerInterfaceHtml/",
    "swt": "<BinarySecurityToken ValueType=\"http://schemas.xmlsoap.org/ws/2009/11/swt-token-profile-1.0\" EncodingType=\"http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-soap-message-security-1.0#Base64Binary\" xmlns=\"http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-secext-1.0.xsd\">U2Vzc2lvbklkPWU2ZDQ0ZTc4LTY4YzgtNDhiNS05MGNiLTk3MzJkNDE4ZTdjZCU3YzEwNjI1MTIwMjYmaHR0cCUzYSUyZiUyZnNjaGVtYXMueG1sc29hcC5vcmclMmZ3cyUyZjIwMDUlMmYwNSUyZmlkZW50aXR5JTJmY2xhaW1zJTJmbmFtZT1hZG1pbjEmSXNzdWVyPWRvY3ZpZXdlci53b2x0ZXJza2x1d2VyZnMuY29tJkF1ZGllbmNlPSZFeHBpcmVzT249MTYyNTgzOTU2MSZITUFDU0hBMjU2PXlvaFRXTURsYmolMmYwMUtWeGJpJTJmMWhCelN4eGlUNnV4c2lHJTJmek82UzNtYk0lM2Q=</BinarySecurityToken>"
}
