DocViewer Workflow Outline – using Expere Document Services (SOAP)

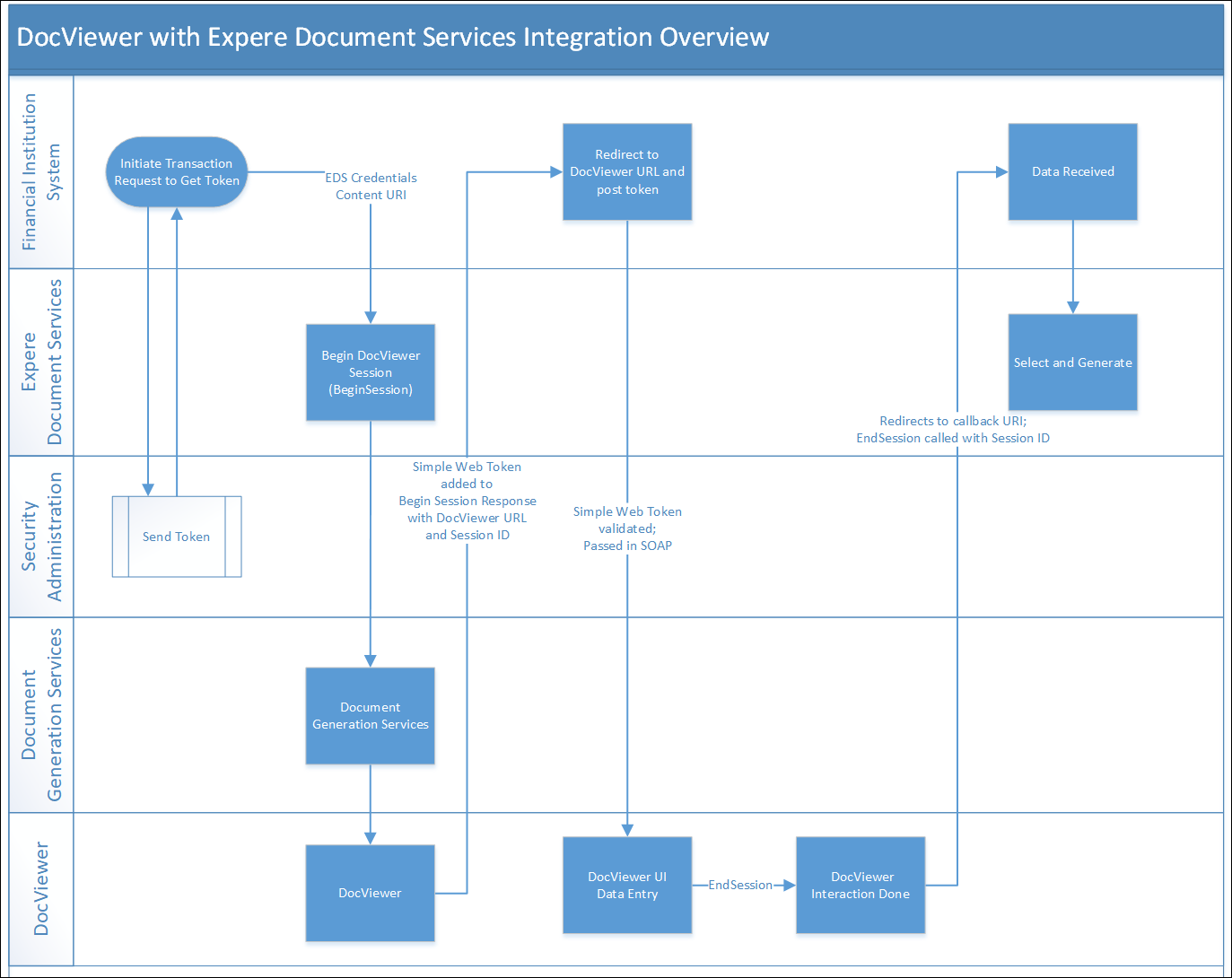

This outline walks you through all of the steps that occur when using Expere Document Services with DocViewer.



Note: There is critical authentication and authorization information here; while it was written originally for a standard Expere Document Services (EDS) Select and Generate call, the same principal applies when calling DocViewer as part of an overal EDS workflow.
  1. The external application calls EDS with a BeginSession API call using the EDS credentials and content URI for validation (BeginSession and BeginSessionIn).
  2. EDS passes the BeginSession call to Document Generation Services to validate library access.
  3. Document Generation Services resolves the alias to obtain a content URI that DocViewer will understand and then calls BeginSession on DocViewer.
  4. DocViewer obtains a Simple Web Token (SWT) and adds that to the BeginSessionResponse with the DocViewer URL (https://ct-expere.wolterskluwerfs.com/DocServices/Services/SecuritySession/SecuritySessionSvc.svc) and SessionID; this collection of data is sent back to the original calling party (BeginSessionResult).
  5. The external application renders a page that immediately redirects to the returned DocViewer URL and posts the token.
  6. DocViewer validates the SWT that was passed in the SOAP API; if the token is valid, users input data via DocViewer.
  7. After performing data entry on all desired documents, an EndSession call is placed which returns the updated transaction through the response file (EndSession, EndSessionIn, and EndSessionResult).
  8. After the user receives the data, they can submit a transaction to Expere Document Services through a Select and Generate, Select / Generate, or Generate call. For more information on the Expere Document Services workflow for a Select and Generate API call, see Expere Document Services Workflow Outline - Select And Generate with Callback.
