Expere Document Services Workflow Outline - Select And Generate with Callback

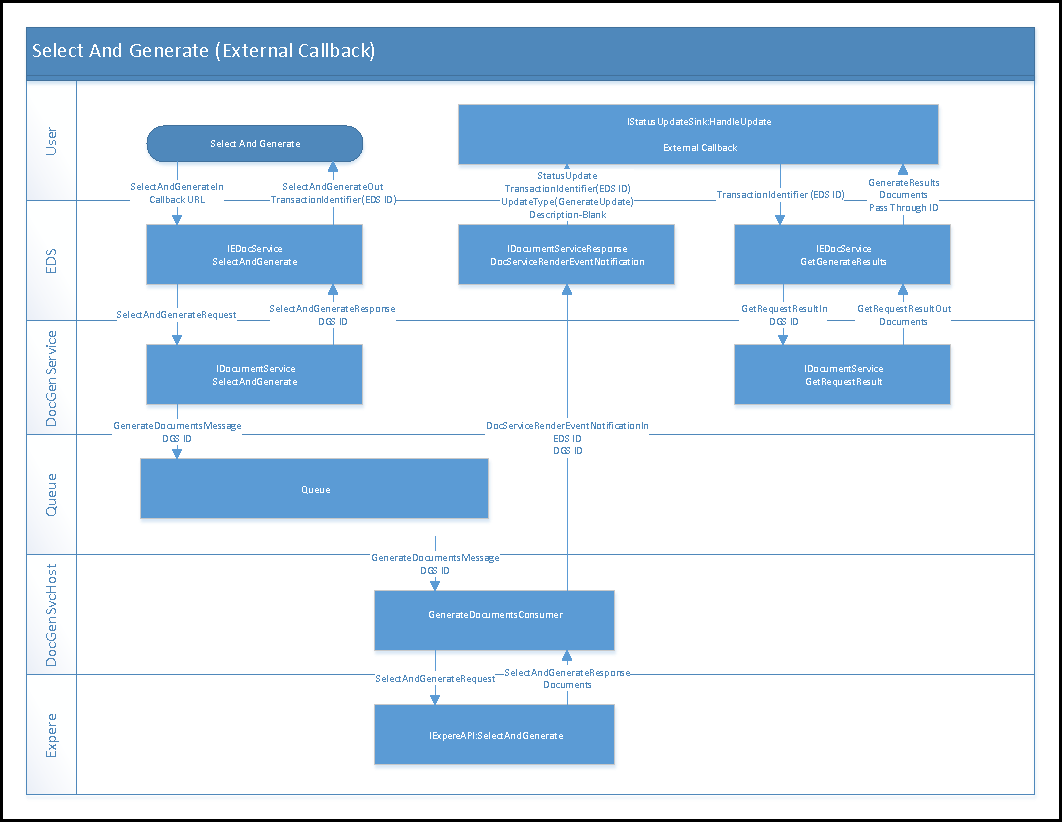

This outline walks you through all of the steps that occur with a Select and Generate API call when using an external callback.



  1. User submits a transaction XML to Expere Document Services through a SelectAndGenerate API call (SelectAndGenerateIn).
  2. The request is then passed to Document Generation Services which places the transaction ID on the queue.
  3. The DocGenSvcsHost (GenerateDocumentsConsumer) pulls the ID off the queue, retrieves the transaction associated with the ID, and sends this information to Expere. .
  4. Expere performs the select and generate action (e.g. SelectAndGenerate), then sends a SelectAndGenerateResponse and the generated Base64 encrypted documents back to the DocGenSvcHost.
  5. The DocGenSvcHost sends the EDS ID and DGS ID back to Expere Document Services.
  6. In Expere Document Services, the TransactionIdentifier, UpdateType, Status Update, and Description are returned to the user via callback to let them know the package/documents are ready for retrieval.
  7. The user, via calling application, submits the TransactionIdentifier to Expere Document Services through a GetGenerateResults call.
  8. From Expere Document Services, a GetRequestResultsIn call with DGS ID is directed to Document Generation Services.
  9. Document Generation Services process the request and returns the documents via GetRequestResultOut to Expere Document Services.
